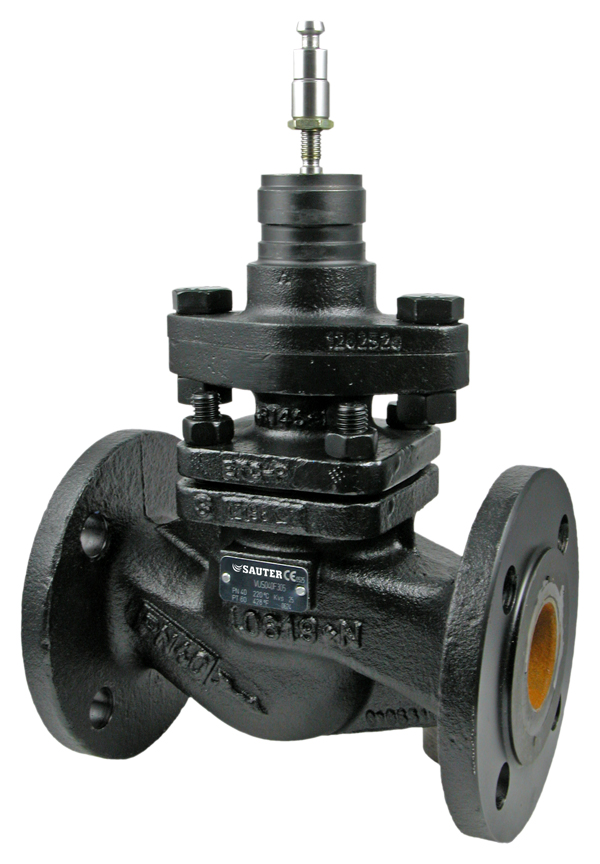

2-way flanged valve, PN 40 (el.)


2-way flanged valve, PN 40 (el.)

How energy efficiency is improved

Efficiency means precise and reliable control


  • Continuous control of cold, warm and hot water in closed circuits, and of steam

  • In combination with valve actuators AVM 322(S), AVM 234S and AVF 234S as control unit

  • Water quality as per VDI 2035

  • Not suitable for drinking water

  • Valve with flange connection as per EN 1092-2, seal form B

  • Regulating valve, free of silicone grease, matt black

  • Equal-percentage characteristic, can be set with SUT valve actuators to linear or quadratic

  • The valve is closed when the spindle is moved in. Closing procedure only against the pressure

  • Valve body made of cast steel; spindle, seat and plug of stainless steel

  • Maintenance-free stuffing box, made of stainless steel, with spring-loaded PTFE washer up to 220 °C, with graphite seal up to 260 °C
