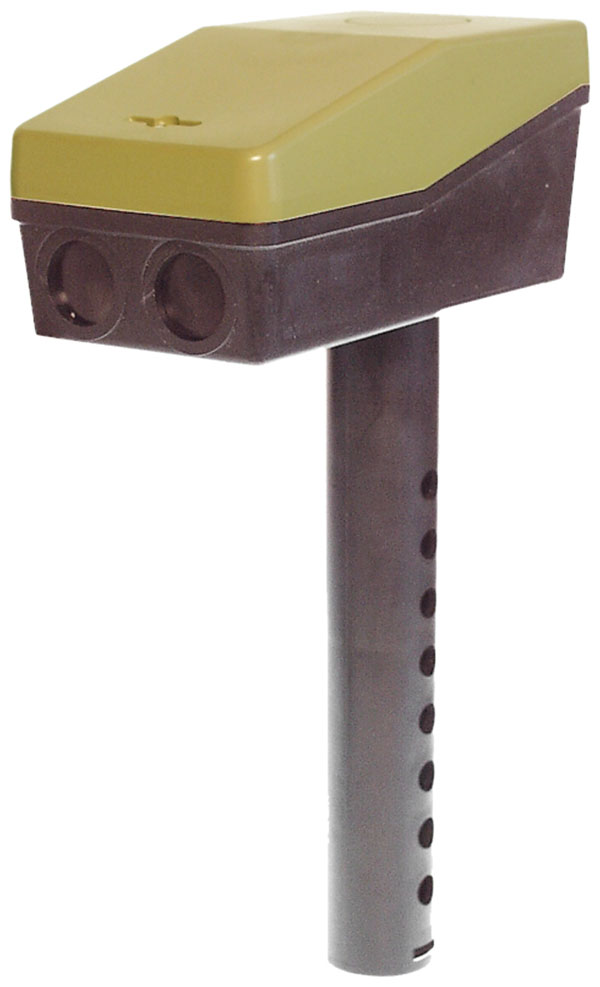

Pneumatic humidity transducer for duct fitting
HTP
How energy efficiency is improved
Precise measurement of humidity in pneumatic installations for optimum control of HVAC systems
funkcje
-
Converts the measured relative humidity into a pneumatic standard signal of 0.2…1.0 bar
-
Measuring element consisting of a temperature-compensated humidity sensor with a stabilised synthetic textile strip
-
Compressed-air connection Rp⅛”
-
Nozzle-ball system
Arkusze danych
Instrukcje montażu
Inne dokumenty
Broszury
HTP: Duct transducer for relative humidity
pdf : 117 KB
pdf
HTP151
pdf : 148 KB
pdf
Centair. The pneumatic universal controller system for air-conditioning and heating systems
pdf : 405 KB
pdf
Pneumatic room pressure control
pdf : 361 KB
pdf
