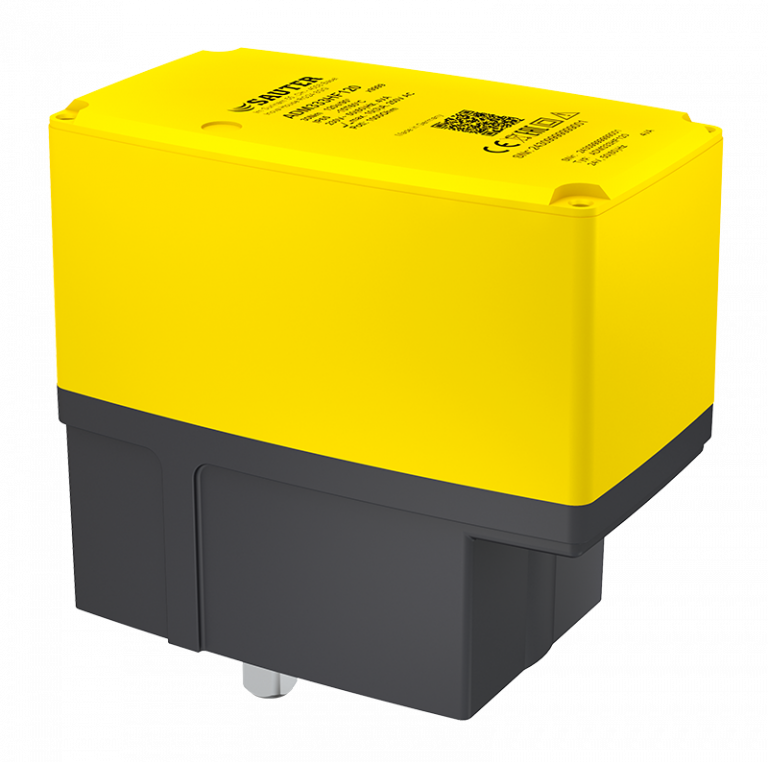

Motorised actuator with positioner
ADM 333SF
How energy efficiency is improved
Electric cut-off in end position to save energy
funkcje
-
Actuation of final control elements such as butterfly valves, gates and air dampers
-
For controllers with continuous output (0(2)…10 V/0(4)…20 mA)
-
Synchronous motor with two limit switches and integrated positioner
-
Menu-led configuration via an internal TFT display
-
Positional feedback signal via 0(2)…10 V/0(4)…20 mA
-
Potential-free fault signal output
-
Configurable direction of operation
-
Control unit to be actuated can be moved to any intermediate position
-
Maintenance-free metal gearbox
-
Three cable inlets with M16 × 1.5 cable gland for cables Ø 4.5 to 10 mm
Arkusze danych
Instrukcje montażu
Inne dokumenty
Broszury
ADM 333SF: Motor drive
pdf : 1 MB
pdf
MV Monatge Kit ADM333
pdf : 2 MB
pdf
MV_ADM333HF12x.pdf
pdf : 14 MB
pdf
Poster valves and actuators - 2023
pdf : 1 MB
pdf
Valves and actuators
pdf : 3 MB
pdf
