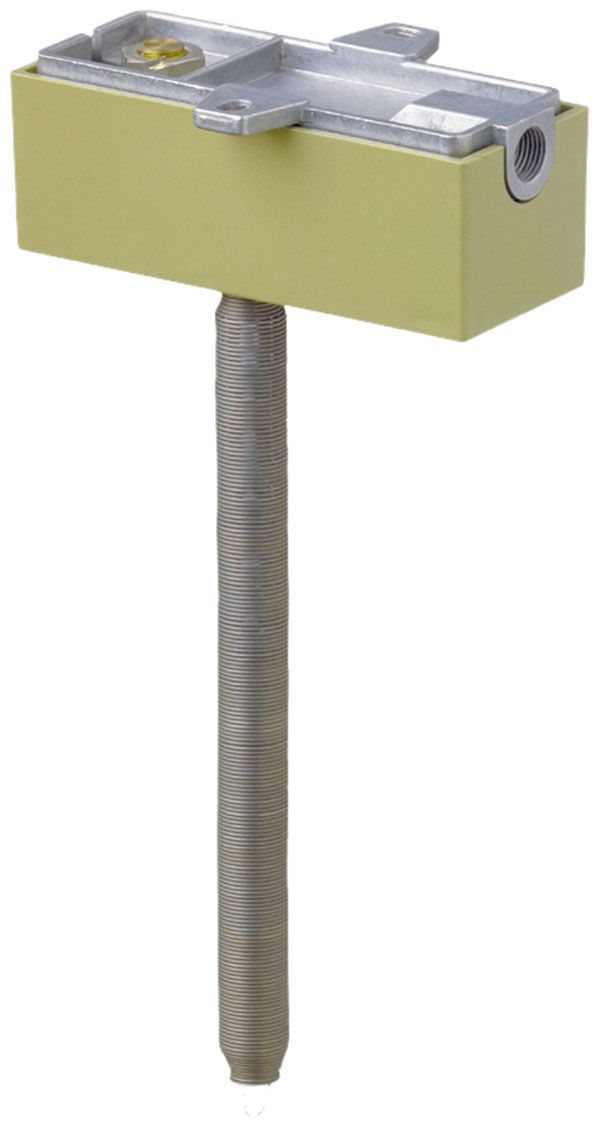

Pneumatic travel sensor
TUP 224 F901
How energy efficiency is improved
Enables demand-controlled volume flow control for fume cupboards
funkcje
-
Suitable for setting up variable air volume systems for fume cupboards in conjunction with the pneumatic volume-flow controller RLP100F123
-
Continuous output signal as a command variable for the air volume controller
-
Should ideally be fitted to the counterweight on the front sash of the fume cupboard
-
Compressed-air connection with Rp ⅛” female thread
-
Stainless-steel spring (with long-term stability)
-
Possible measuring range up to 2 m for walk-in fume cupboards
Arkusze danych
Instrukcje montażu
Inne dokumenty
Broszury
TUP 224 F901: Pneumatic sash sensor
pdf : 1 MB
pdf
TUP224F901
pdf : 2 MB
pdf
incorporating clean rooms into a building management system
pdf : 929 KB
pdf
Pneumatic room pressure control
pdf : 361 KB
pdf
