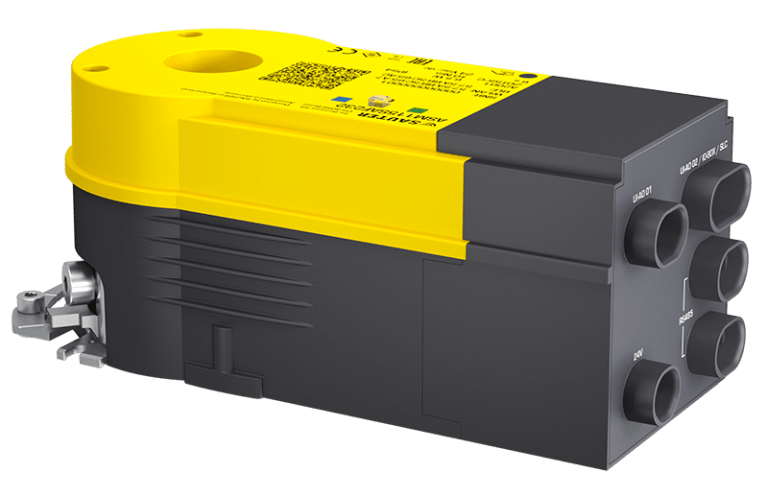

Smart Actuator for ventilation dampers

ASM 115SA

Smart Actuator for ventilation dampers

How energy efficiency is improved

Damper actuator with integrated, freely programmable controller and cloud connection in one device. Can be integrated into a local building automation system via BACnet or into the SAUTER Cloud via MQTT. Communicates via WLAN and Bluetooth. Automatic adaptation to the damper, precise activation and high energy efficiency with minimal operating noise and smart functions


funkcje

  • Smart actuator as an intelligent IoT solution for autonomous control of heating and air-conditioning applications in smart buildings

  • Ready-made HVAC standard applications enable efficient installation and commissioning of small systems

  • Applications are selected from the library via smartphone app and installed on the Smart Actuator

  • BACnet, Bluetooth LE and WLAN interface for flexible system integration

  • Commissioning, parameterisation and remote access to the system are conveniently carried out via a smartphone app

  • As an IoT device, the cloud connection for remote access takes place via MQTT using TLS encryption

  • Extensive diagnostic data from the actuator enables predictive maintenance of installations

  • Enables creation of Smart Actuator networks with distributed intelligence

  • Optionally, the Smart Actuator can be used flexibly in BA networks due to free programmability via CASE Suite

  • Real-time clock for calendar functions and time programmes

  • Two universal I/Os for connecting external sensors and actuators

  • Direct connection of a room operating unit

  • Flexibly expandable with up to two Smart Actuator SAIO 100 I/O modules for comprehensive control tasks

  • Pre-assembled cables, with colour- and mechanically-coded connectors, allow fast and error-free wiring

  • Easy mounting using self-centring spindle adapters

  • BLDC motor technology enables extensive diagnostic functions

  • Intelligent angle of rotation adaptation and detection incl. feedback signal

  • Electronic, torque-dependent cut-off

  • Gear unit can be disengaged for manual adjustment
