Average-temperature transducer

TMUP

Average-temperature transducer
How energy efficiency is improved
Accurate recording of temperature in pneumatic installations for optimal control of HVAC systems.

Areas of application
Measurement and/or control of average temperature value in air ducts in combination with pneumatic control equipment (Centair).

Properties
  • Part of the Centair family of systems

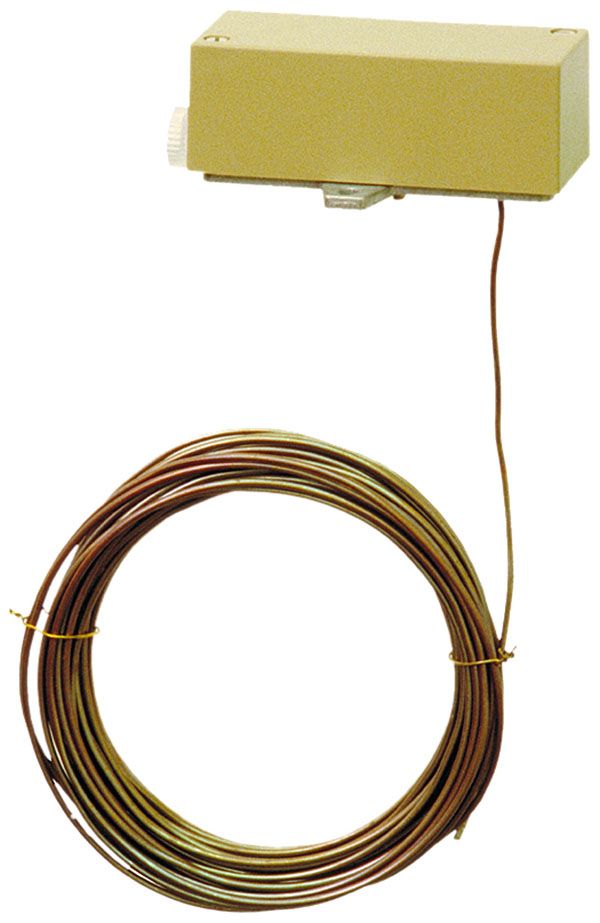

  • Capillary tube filled with expansion fluid (10 m long)
  • Conversion of temperature into a standard 0.2 to 1.0 bar pneumatic signal
  • Complies with directive 97/23/EC Art. 3.3 on pressure equipment

Technical description
  • Supply pressure 1.3 bar ± 0.1
  • Nozzle/ball system
  • Linearity of output signal <2%
