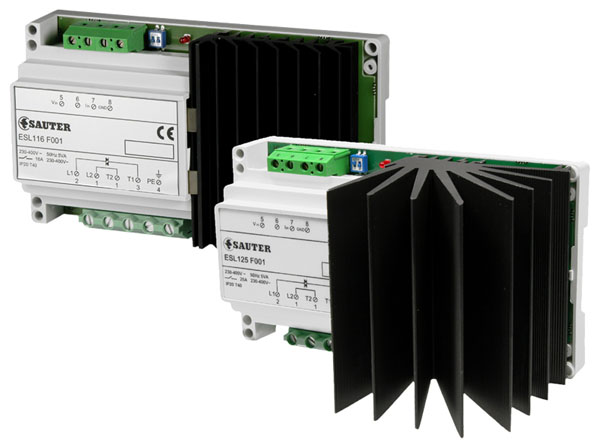

Electronic power control unit
ESL
How energy efficiency is improved
The output signal (pause pulse) ensures that despite continuous controlling, the system is highly effective
funkcje
-
Output controlling in electric auxiliary heating systems, electric heating elements in heating coils, fan coil units, etc., and heating elements for domestic hot water preparation
-
Suitable for consumer loads that are controlled via one, two or three phases
-
Y and Δ circuits are possible
-
Analogue inputs for active standard signals of 0/2…10 V or 0/4…20 mA
-
LED indicator
Arkusze danych
Instrukcje montażu
ESL: Electronic power control unit
pdf : 1 MB
pdf
ESL116F001
pdf : 91 KB
pdf
