With the development of the ecos504-IoT, which uses the Internet of Things (IoT), the SAUTER Group is developing and offering increasingly intelligent, communicative and user-friendly solutions. In this way, SAUTER is achieving the necessary milestones to play a decisive role in the future of building automation, “Smart Home” and “Smart Building”.

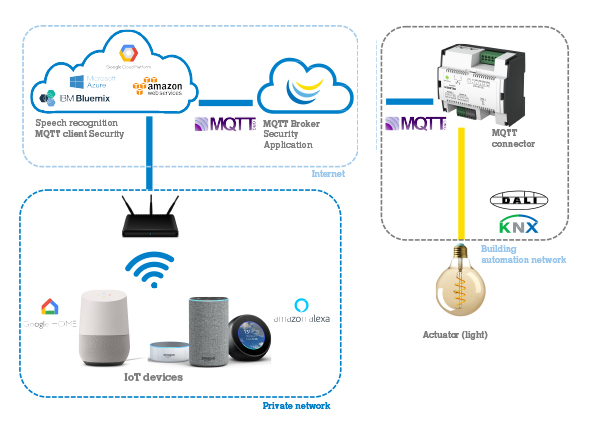

SAUTER ecos504-IoT is a new step in building automation: it is now possible to use information via the MQTT protocol directly from public clouds and thus instantly integrate it into the building management and control strategy.
The ecos504-IoT is a programmable BACnet server with an integrated BACnet/MQTT gateway.
It provides and receives BACnet information from clouds via the MQTT protocol. As such, it acts as a gateway between a cloud and technical building automation networks.
An order given from a cloud application can control a BACnet device in the building automation network via the ecos504-IoT. This is thus called a “BACnet Edge Controller”.
The ecos504-IoT solution is based on common developed infrastructures (Internet, access point, etc.), public clouds such as Microsoft Azure, Amazon AWS, Google Cloud and established technologies.
As the leading provider of solutions for building automation technology in Green Buildings, SAUTER ensures good climate conditions and a sense of well-being in sustainable environments. SAUTER is a specialist in developing, producing and marketing products and systems for energy-efficient total solutions, and offers a comprehensive range of services to ensure the energy-optimised operation of buildings. Our products, solutions and services enable high energy efficiency throughout the entire life-cycle of a building – from planning and construction through to operation – in office and administrative buildings, research and educational facilities, hospitals, industrial buildings and laboratories, airports, leisure facilities, hotels and data centres. With over 100 years’ experience and a track record of technological expertise, SAUTER is a proven system integrator that stands for continuous innovation and Swiss quality. SAUTER provides users and operators with an overview of energy flows and consumption, and of the development of the costs involved.
